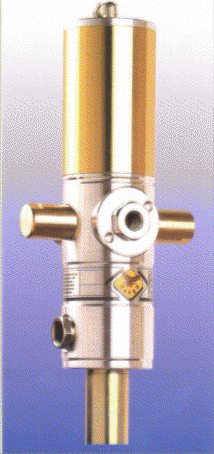

AIR-OPERATED OIL PUMPS
A range of air-operated oil pumps to cover every need in the automotive, commercial vehicle and heavy plant workshop. All are powered by robust, trouble free air motors of proven design and are fitted with sintered bronze air exhaust mufflers.
Two models are available, RL35160 3:1 ratio and RL36060 5:1 ratio. The 3:1 will handle all normal requirements. The 5:1 pump is ideally suited to large workshops, multiple outlets or high viscosity lubricants. Both pumps are available as individual stub pumps or as complete installation kits.

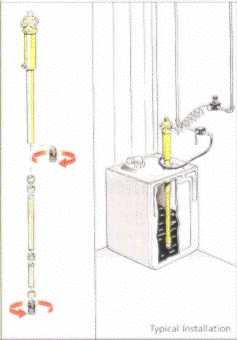

TYPICAL COMPONENTS OF OIL PUMP KITS
| Item | Description |
| 1 | Oil Pump |
| 2 | Adapter |
| 3+4 | Air reg/gauge |
| 5+6 | Air cplr/nipple |
| 7 | Air Hose |
| 8 | Bung adapter |
| 9 | Riser tube |
| 10 | Suction valve |
| 11 | Air eliminator |
| 12 | Adapter |
| 13 | Oil Hose |
| 14 | Ball valve |
PUMP KITS MODEL 35160 3:1
| Part No. | Description |
| PL3503M | 3:1 pump kit using RL35160 pump for 3ft tank/barrel c/w air eliminator metered systems. |
| PL3503S | 3:1 pump kit using RL35160 pump 3ft tank/barrel c/w suction valve non metered systems |
| PL3504M | 3:1 pump kit using RL35160 pump 4ft tank c/w suction valve non metered systems. |
| PL3504S | 3:1 pump kit using RL35160 pump 4ft tank c/w suction valve non metered systems |
PUMP KITS MODEL 36060 5:1
| Part No. | Description |
| PL4403M | 5:1 pump kit using RL36060 pump 3ft tank/barrel c/w/ air eliminator metered systems. |
| PL4403S | 5:1 pump kit using RL36060 pump 3ft tank/barrel c/w suction valve non metered systems. |
| PL4404M | 5:1 pump kit using RL36060 pump 4ft c/w air eliminator metered systems. |
| PL4404S | 5:1 pump kit using RL36060 pump 4ft tank c/w suction valve non metered systems. |
WALL MOUNT OIL PUMP KITS FOR CONNECTION TO TANKS
Kits comprise all necessary components inc. air reg., wall brkt, valves, hoses etc.
| Part No. | Description |
| PL3500 | Wall mount kit using RL35160 3:1 pump. |
| PL3600 | Wall mount kit using RL36060 5:1 pump. |
