POSSUM
A RANGE OF BUDGET-PRICE LIQUID BATCHERS

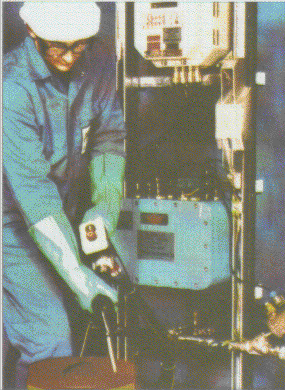

MODEL SHOWN: POSSUM NINE
For a quotation on
Permex Possum our check list can be located by clicking
on the Info button.
- Simple to install and use.
- General Batching.
- Volumetric Dispensing - 1 litre and upwards
- For Re-sale Containers - 5 litres and upwards
- Tried and tested technology
| Type | Wetted Materials | Flow rate (l/min) | Accuracy + % vol | Meter | Nozzle | Features | Duty |
| One | 316 SS, uPVC or PVC, PVDF, PP, Viton®, 304 SS, Ceramic, Tungsten carbide. | 10-60 or 1-10 | 1.5 | PMC 4S112 or PMC4S11 turbine | SP-PSV in anti-static polypropylene, 316 and Viton®. | Pumped or gravity flow. | For internal purposes - for a wide range of free flowing liquids. Meter is self powered. |
| Two | 316 SS, uPVC or PVC, PPO, PP, Viton®. | 10-60 | 0.5 | PPM25PV positive displacement | SP-PSV in anti-static polypropylene, 316 and Viton®. | AutoBatch, 110/240V, Pumped or gravity flow. | Suitable for resale purposes. 5 litre and above. Wide range of liquids. Viscosities up to 70cp. |
| Three | Mild steel, Brass and aluminium, 316 SS, 416 SS, Fluorinated polymers. | 10-100 | 0.25 | PPT19 precision turbine with 316 body, 416 rotor | Elaflex* ZV19 seals made of Viton® | AutoBatch, 110/240V, Pumped or gravity flow. | Suitable for resale purposes, 1 litre and above. Wide range of free flowing and foaming liquids. |
| Four | Mild steel, Brass and aluminium, 316 SS, 416 SS, Fluorinated polymers, Viton®. | 10-80 | 0.25 | PPT19 precision turbine with 316 body, 416 rotor | Elaflex* ZVA Slimline auto nozzle seals made of Viton®. | AutoBatch, Auto level cut-off, 110/240V, Pumped flow. | Suitable for resale purposes 1 litre and above. Not for use on foaming liquids or liquids leaving heavy residue on evaporation. Liquid delivery must be between 7 & 65 psig under flow conditions. |
| Five | 316 SS, 416 SS, Fluorinated polymers. | 10-80 | 0.25 | PPT19 precision turbine with 316 body, 416 rotor | Elaflex* ZVA VA Stainless nozzle fluoropolymer seals | AutoBatch, Auto level cut-off, 110/240V, Pumped flow. | Suitable for resale purposes 1 litre and above. Not for use on foaming liquids or liquids leaving heavy residue on evaporation. Liquid delivery must be between 7 & 65 psig under flow conditions. |
| Six | uPVC or PVC, PVDF, PPO, PP, Viton®. | 10-100 | 0.5 | PPM25PF positive displacement | Custom built plastic nozzle with manual 1/4 turn valve. | AutoBatch, 110/240V, Pumped or gravity flow. | Suitable for resale purposes 5 litres and above. For aqueous liquids of viscosity up to 500cp compatible with all wetted parts. |
| Seven | uPVC or PVC, PVDF, PPO, PP, Viton®. | 10-100 | 0.5 | PPM25PF positive displacement | Custom built plastic nozzle with manual 1/4 turn valve. | AutoBatch, Auto level cut-off, 110/240V, 60-80 psi Air, Pumped or gravity flow. | Suitable for resale purposes 5 litres and above. For aqueous liquids of viscosity up to 500cp compatible with all wetted parts. |
| Eight | 316 SS, PPO, PP, Viton®, Delrin and polycarbonate. | 10-80 | 0.5 | PPM25PC | Food-grade Delrin & 316 Stainless steel. | AutoBatch, 110/240V, 60-80 psi Air, Pumped or gravity flow. | Potable, non-perishable liquids. |
| Nine | 316 SS, 416 SS, Fluorinated polymers. | 10-80 | 0.25 | PPT19 precision turbine | Elaflex* ZVA VA Stainless nozzle fluoropolymer seals | AutoBatch, Auto level cut-off, 110/240V, 60-80 psi Air, Pumped flow. | As for Possums Four and Five but suitable for highly flammable liquids. |
| Ten | 316 SS, Fluorinated polymers. | 20-100 | 0.25 | 25mm OP meter positive displacement | Custom built 316 stainless nozzle with manual 1/4 turn valve. | AutoBatch, 110/240V, 60-80 psi Air, Pumped or gravity flow. | Suitable for resale purposes 10 litres and above. Suitable for highly flammable liquids of up to 2000cp. |
*Alternative seals are available for nozzles.
Permex Possums come complete with meter, valves, 5m of hose and nozzle.
Permex Possums Two to Eight are automatic batchers with the 'Start' at the nozzle for repetitive batching and use a Permex Microbatch controller.
Permex Possums Nine and Ten use a Badger PD110 batch controller.
Permex Possums come with pre-assembled wet-side and pre-wired dry side so installation is simplified.
Permex Possums are 19mm or 25mm nominal bore.
Viton® is a registered trademark of DuPont Dow Elastomers.
